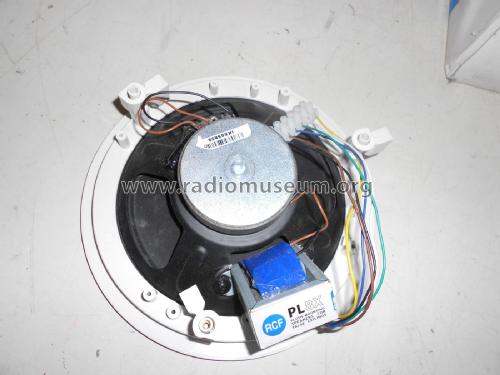

Flush-mounting speaker for false ceilings PL8X
RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)
- Country
- Italy
- Manufacturer / Brand
- RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)
- Year
- 2000 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 309935
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers / Ø 8 inch = 20.3 cm
- Power out
- 20 W (40 W max.)
- Material
- Various materials
- from Radiomuseum.org
- Model: Flush-mounting speaker for false ceilings PL8X - RCF; Reggio Emilia AEB
- Shape
- Miscellaneous shapes - described under notes.
- Notes
-
2 way system woofer with coaxial tweeter - SPL at program power at 1 m: 109 db - dispersion angle as function of vocal intelligibility: 80° - IP 44 protection - built-in multitap transformer for costant voltage systems.
- Net weight (2.2 lb = 1 kg)
- 2.6 kg / 5 lb 11.6 oz (5.727 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
