- Country
- Italy
- Manufacturer / Brand
- RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)
- Year
- 1978 ??
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 264496
Produktblatt
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

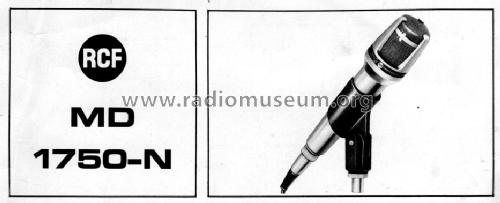

- Model: MD 1750-N - RCF; Reggio Emilia AEB
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 185 x 42 x 0 mm / 7.3 x 1.7 x 0 inch
- Notes
-
Dynamisches Cardioid-Mikrofon,
30-16000Hz, 200Ω, 0,3mV / µbar,
Anschluß 3pol.-Kleintuchel (Male)
- Net weight (2.2 lb = 1 kg)
- 0.410 kg / 0 lb 14.4 oz (0.903 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
