• Country
• Italy

• Manufacturer / Brand
• RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)

• Year
• 1994 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 167065

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 160 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

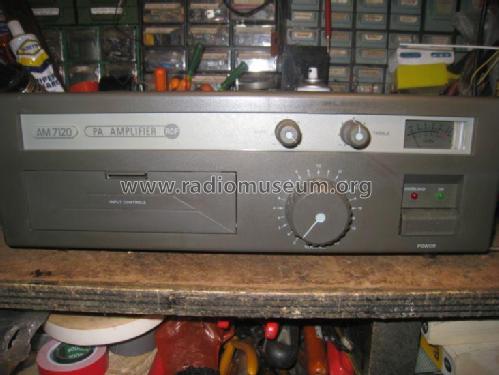

• Model: PA Amplifier AM-7120N - RCF; Reggio Emilia AEB

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 367 x 115 x 226 mm / 14.4 x 4.5 x 8.9 inch

• Notes
• Mono-PA, Amplifier mit 4 Eingängen über Din 7-Pol Buchsen, (Mikrofon / Phono / Radio / Tonband), Ausgänge über Schraubanschlüsse: 4/8/16/20/40/80 Ohm, max. Leistungsaufnahme 320 Watt.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
