• Country
• Spain

• Manufacturer / Brand
• RCR (Radio Cine Reparación); Reus

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 347446

• Number of Tubes
• 6

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6F6G Y63 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

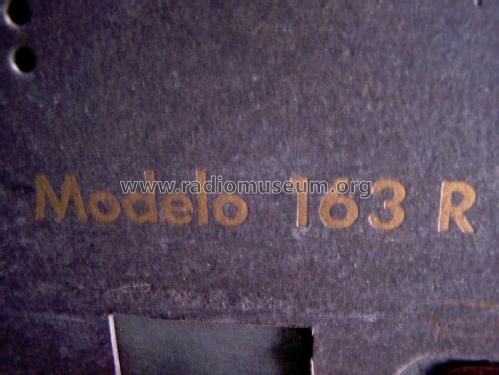

• Model: 163 R - RCR Radio Cine Reparación;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 515 x 400 x 260 mm / 20.3 x 15.7 x 10.2 inch

• Author
• Model page created by Victor Boj Cabistañ. See "Data change" for further contributors.

• Other Models

• Here you find 3 models, 3 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
