• Country
• Japan

• Manufacturer / Brand
• Reace Electronics Industry Co., Ltd.; (where?)

• Year
• 1975 ??

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 358360

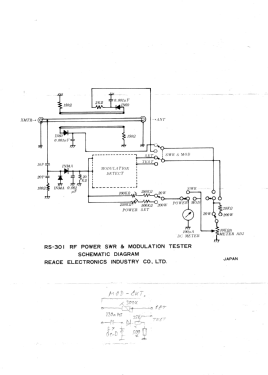

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• 1N34A 1N34A 1N60 1N60

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

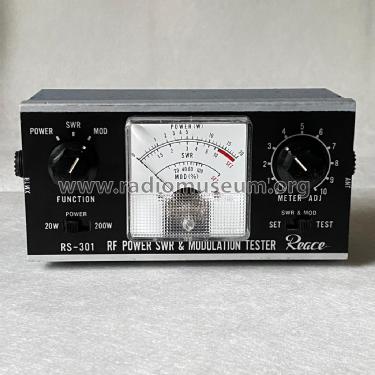

• Model: RF Power SWR & Modulation Tester RS-301 - Reace Electronics Industry Co.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 150 x 88 x 90 mm / 5.9 x 3.5 x 3.5 inch

• Notes

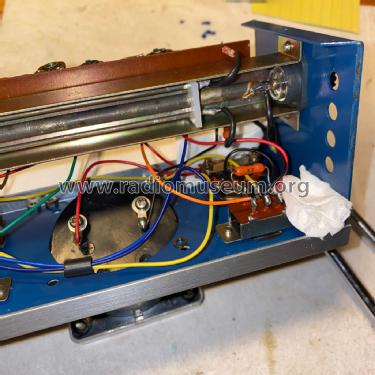

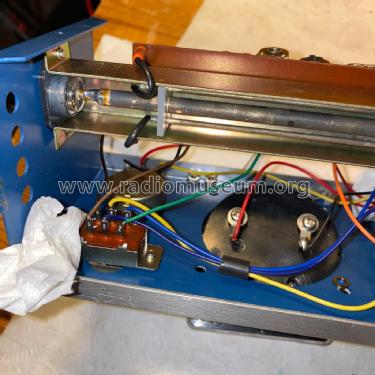

• RS-301 RF Power SWR & Modulation Tester

  Zur Prüfung von HF-Ausgangsleistung in 2 Bereichen (20/200 Watt), Stehwellenverhältnis und AM-Modulationsgrad [%] im Frequenzbereich von 3 MHz bis 55 MHz bei Z= 50 Ω.

  Anzeige auf einem 60 x 60 mm grossen Drehspulinstrument 100 µA mit 90° Skalenwinkel.

  Anschlüsse: 2x SO-239 Buchsen (UHF-Norm) links und rechts seitlich am Gerät.

• Net weight (2.2 lb = 1 kg)
• 0.750 kg / 1 lb 10.4 oz (1.652 lb)

• Mentioned in

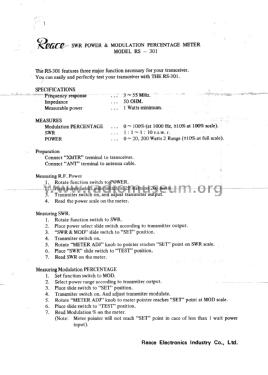

• -- Original-techn. papers. (Original-Bedienungsanleitung)

• Author
• Model page created by Sebastian Kirner. See "Data change" for further contributors.
