• Country
• Italy

• Manufacturer / Brand
• Reader's Digest; Italy

• Year
• 1965 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 282780

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

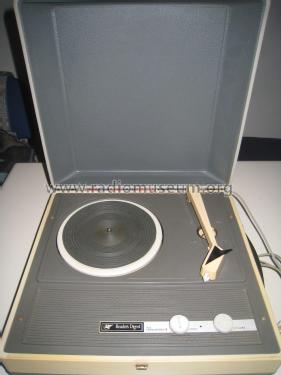

• Model: Fonovaligia 4 velocità All Transistor 5 - Reader's Digest; Italy

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 350 x 130 x 310 mm / 13.8 x 5.1 x 12.2 inch

• Notes

• Controllo volume - tono - arresto automatico del disco a fine corsa - 4 velocità: 16 - 33 - 45 - 78 giri

  Made in Italy

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
