• Country
• United States of America (USA)

• Manufacturer / Brand
• Readrite Meter Works; Bluffton (OH)

• Year
• 1932 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 54974

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

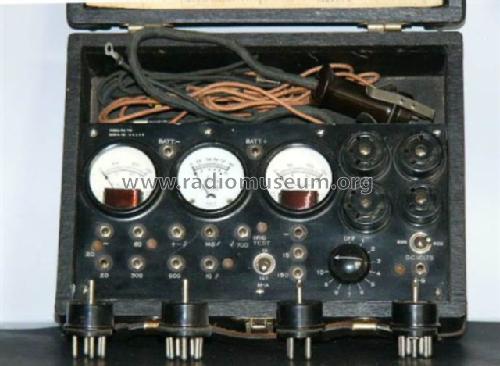

• Model: Set Tester 710 - Readrite Meter Works; Bluffton

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 200 x 70 mm / 10.6 x 7.9 x 2.8 inch

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Literature/Schematics (1)
• Rider's Perpetual, Volume 3 = 1933 and before (Page 3-1)
