• Country
• United States of America (USA)

• Manufacturer / Brand
• Realtone Electronics Corp.; New York

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122501

• • alternative name: Realtone, NY

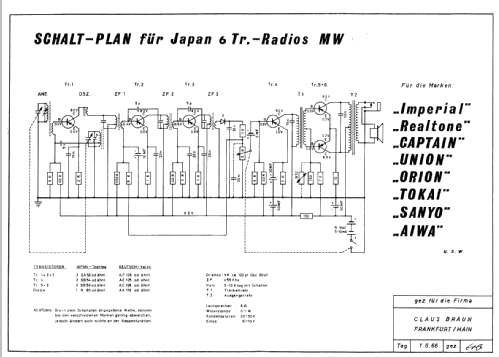

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 3109-2 - Realtone Electronics Corp.;

• Shape
• Tablemodel, low profile (big size).

• Notes

• Realtone Table Top AM Radio Model 3109-2.
  Power Consumption 6 Watts.
  12 Solid State Devices (6x Transistors, 2x Diodes, 4x Rectifiers)
  Made in Singapore.


• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
