Space Capsule Style Radio 1183
Realtone Electronics Corp.; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Realtone Electronics Corp.; New York
- Year
- 1973 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 199793
-
- alternative name: Realtone, NY
- Number of Transistors
- 5
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker

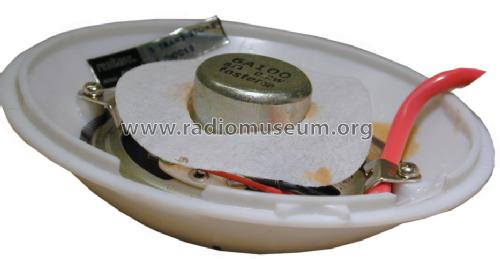

- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Space Capsule Style Radio 1183 - Realtone Electronics Corp.;
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Notes
-

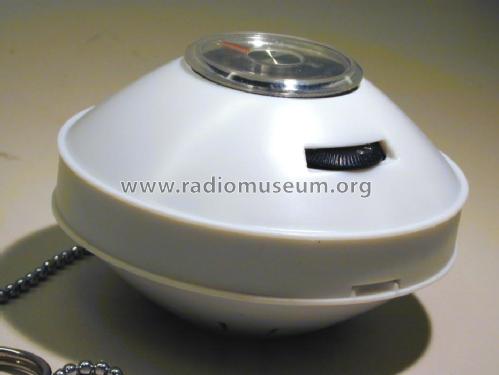

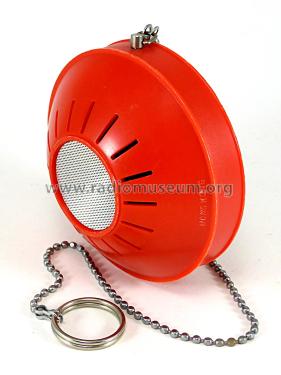

Realtone model 1183 with metal chain and ring , diameter 90 mm , height 44 mm , speaker at bottom , tuning scale to top , in various colors known , 5 transistors + 2 diodes. Gross weight incl full packing 0.200 kg.
Made in Hong Kong
- Net weight (2.2 lb = 1 kg)
- 0.150 kg / 0 lb 5.3 oz (0.33 lb)
- Price in first year of sale
- 3.97 USD
- Mentioned in
- -- Original prospect or advert (Abiline Reporter-News, June 19, 1974, page 6)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
