Lincoln Nine Transistor Cat. No. 23 SC 202

Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

Year
1962 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
196821

Schematics

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 2287666) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (1)

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 2287664) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (1)

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 2287665) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (1)

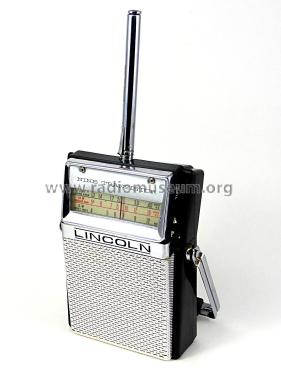

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 2287667) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (1)

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 2287668) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (1)

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 2287669) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (1)

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 986522) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (2)
Ebay auction by user transtan 220776173990

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 986518) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (2)
Ebay auction by user transtan 220776173990

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 986519) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (2)
Ebay auction by user transtan 220776173990

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 986520) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (2)
Ebay auction by user transtan 220776173990

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 986523) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (2)
Ebay auction by user transtan 220776173990

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 986524) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (2)
Ebay auction by user transtan 220776173990

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 986525) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (2)
Ebay auction by user transtan 220776173990

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 986527) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (2)
Ebay auction by user transtan 220776173990

Lincoln Nine Transistor Cat. No. 23 SC 202; Allied Radio Corp. (ID = 2932277) Radio — Allied Radio Corp. Lincoln Nine Transistor Cat. No. 23 SC 202 (2)
1962 Allied catalog, page 122.

Technical Specifications

Number of Transistors
9

Semiconductors

Main principle
Superheterodyne (common)

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast, Long Wave and Short Wave.

Power type and voltage
Dry Batteries / AA: 4 x 1.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Lincoln Nine Transistor Cat. No. 23 SC 202 - Allied Radio Corp. Knight,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
4.375 x 6.25 x 1.875 mm / 0.2 x 0.2 x 0.1 inch

Notes
Lincoln Nine Transistor;
Coverage:
LW: 130...400 kHz (also named "Marine Band")
MW: 540...1600 kHz (Standard Band) with markings for Civil Defense
SW: 4,0...12 MHz.
Seperate ferrite rod antennas for MW/SW and LW.

Identical to Realtone Voyager TR-970 in design. Removable telescoping antenna stored in pouch on leather case. Civil Defense marks on station plate (MW band).

Made in Japan

Price in first year of sale
32.88 USD

Mentioned in
Allied Radio Catalog (Knight) (1962, page 122)
