• Year
  • 1960 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 221462

 Technical Specifications

  • Number of Transistors
  • 8
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

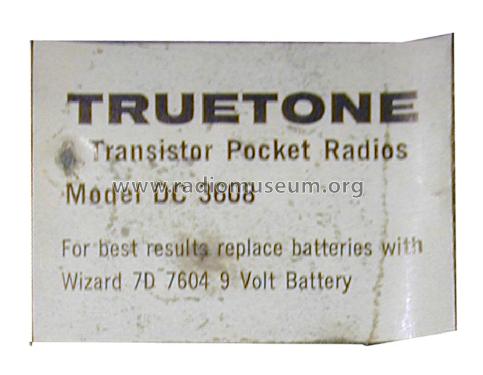

  • Model: Truetone DC-3608 - Western Auto Supply Co.
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 68 x 112 x 32 mm / 2.7 x 4.4 x 1.3 inch
  • Notes

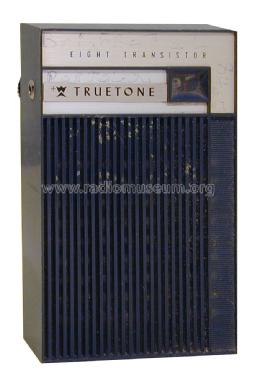

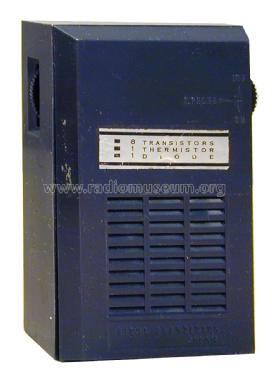

  • Truetone DC-3608 pocket radio 8 transistor + 1 Thermistor 1 Diode with full size leather case

    Made in Japan

  • Net weight (2.2 lb = 1 kg)
  • 0.220 kg / 0 lb 7.8 oz (0.485 lb)
  • Author
  • Model page created by Eckhard Wegner. See "Data change" for further contributors.
