• Country
• United States of America (USA)

• Manufacturer / Brand
• Soundesign Corporation; Jersey City, NJ

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135027

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 1177 - Soundesign Corporation; Jersey

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.9 x 4.8 x 1.5 inch / 74 x 122 x 38 mm

• Notes

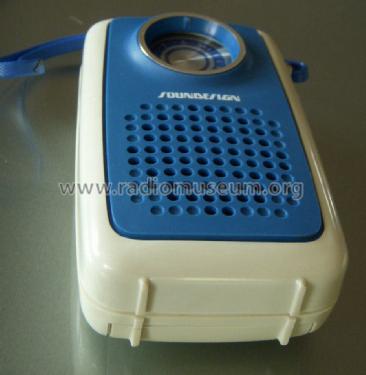

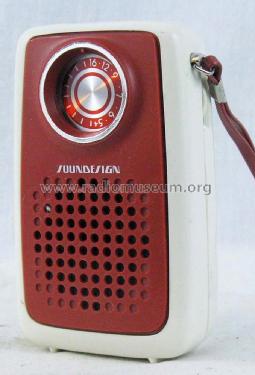

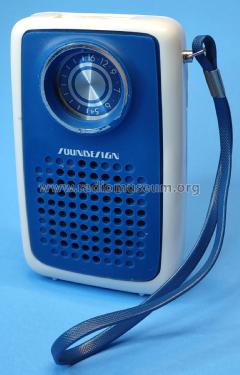

• Soundesign 1177, AM Pocket Radio.

  Different color combinations known are red/white or blue/white,

  Made in Hong Kong

• Net weight (2.2 lb = 1 kg)
• 0.53 lb (0 lb 8.5 oz) / 0.241 kg

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
