TR-1113B
Realtone Electronics Corp.; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Realtone Electronics Corp.; New York
- Year
- 1972 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 329910
-
- alternative name: Realtone, NY
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

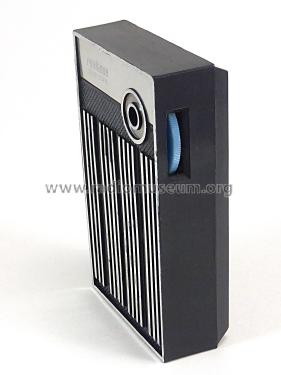

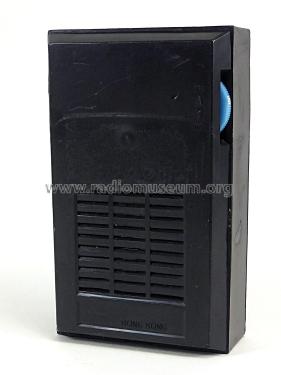

- Model: TR-1113B - Realtone Electronics Corp.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 69 x 112 x 31 mm / 2.7 x 4.4 x 1.2 inch
- Notes
-
Found in a black or turquoise colored plastic case. No earphone jack.
Made in Hong Kong
- Author
- Model page created by Ray Albright. See "Data change" for further contributors.
