2 Band Receiver Portable Radio FM 10N
Fenner, Redi Electronics; Vicenza (VI)
- Country
- Italy
- Manufacturer / Brand
- Fenner, Redi Electronics; Vicenza (VI)
- Year
- 2000 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 285842
- Number of Transistors
- 2
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / D: 3 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 2 Band Receiver Portable Radio FM 10N - Fenner, Redi Electronics;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 215 x 135 x 55 mm / 8.5 x 5.3 x 2.2 inch
- Notes
-

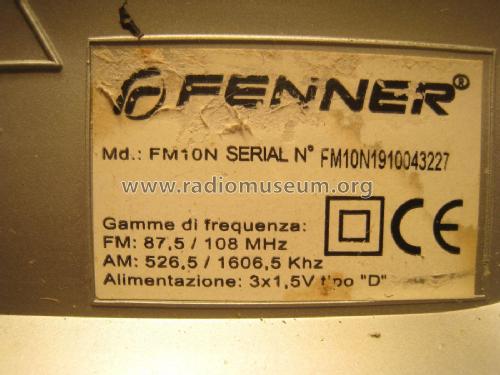

FENNER 2 Band Receiver Portable Radio AM/FM mod. FM10N - controllo volume - antenna telescopica esterna - maniglia di trasporto -commutatore AM/FM - uscita per cuffia - gamme di frequenza: FM: 87,5/108 MHz - AM: 526,5/ 1606,5 kHz -
- Net weight (2.2 lb = 1 kg)
- 0.650 kg / 1 lb 6.9 oz (1.432 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
