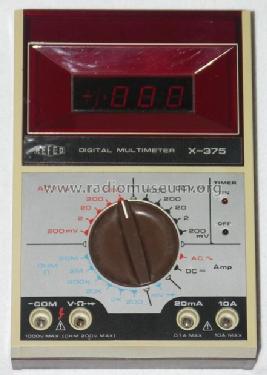

Digital Multimeter X-375

REFCO Manufacturing Ltd.; Hitzkirch

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 264844

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 006P: 1 x 9 & C: 2 x 1,5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digital Multimeter X-375 - REFCO Manufacturing Ltd.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 170 x 120 x 47 mm / 6.7 x 4.7 x 1.9 inch
  • Notes

  • Digitalmultimeter X-375 mit 3,5 stelliger LED-Anzeige

    Meßbereiche DC:
    200mV, 2V, 20V, 200V. 1000V (Ri = 10 MOhm) 20mA, 10A

    Meßbereiche AC:
    200mV, 2V, 20V, 200V. 1000V (Ri = 10 MOhm) 20mA, 10A

    Widerstandsmessung:
    200, 2k, 20k, 200k, 2M, 20MOhm
    Diodentest in mV.

    Entspricht TMK Digital Multimeter GR-2100



  • Net weight (2.2 lb = 1 kg)
  • 0.4 kg / 0 lb 14.1 oz (0.881 lb)
  • Author
  • Model page created by Claus Canisius. See "Data change" for further contributors.
