• Country
• United States of America (USA)

• Manufacturer / Brand
• Regal; New York (NY)

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 349788

• • Brand: Ultradyne

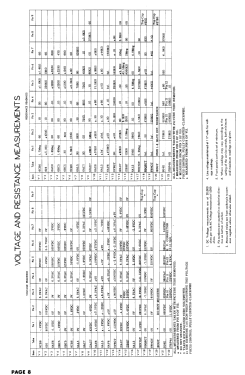

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6CB6 or 6AG5 6J6 6AU6 6BC5 or 6AG5 or 6AU6 or 6CB6 6BC5 or 6AG5 or 6AU6 or 6CB6 6CB6 6AL5 6AC7 12AU7 6AU6 6AL5 6AV6 6V6GT 12AU7 12BH7 6AL5 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 17BP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22D17 Ch= 2217 - Regal; New York NY

• Shape
• Tablemodel, with any shape - general.

• Notes

• Regal model 22D17 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 2217, VHF tuner TV-201 and picture tube 17BP4A.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 143, folder 13, dated 9-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
