Ultradyne L-46
Regal; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Regal; New York (NY)
- Year
- 1945 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 138116
-
- Brand: Ultradyne
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
- Material
- Wooden case
- from Radiomuseum.org

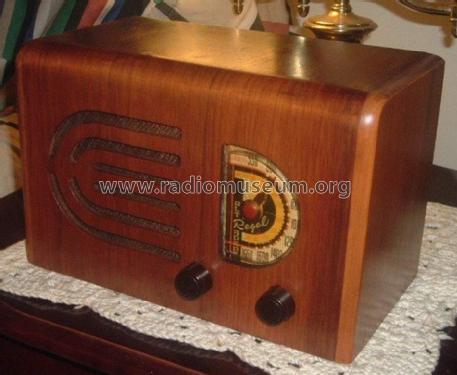

- Model: Ultradyne L-46 - Regal; New York NY
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- Self contained loop antenna. Not an Ultradyne circuit as from the mid 1920's (Lacault).
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Folder 464-21 date 9-46)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
