Regal-Tone Deluxe
Regal Products Corp. (Regaltone, Regal-Tone); Philadelphia, PA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Regal Products Corp. (Regaltone, Regal-Tone); Philadelphia, PA
- Year
- 1926 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 201983
- Number of Tubes
- 5
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Regal-Tone Deluxe - Regal Products Corp. Regaltone
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 21 x 9.25 x 10 inch / 533 x 235 x 254 mm
- Notes
-

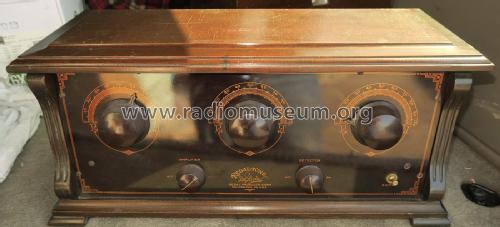

The Regal-Tone 5-tube "Tuned Frequency Receiver" Deluxe is very similar to the Regal-Tone Type R but was redesigned to use the new long pin UX01A tubes. It also has a more attractive stenciled front panel and the speaker connections were moved to the rear of the chassis.
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
