Television Remote Control RT-700

Regency (brand of I.D.E.A.)

Data
Forum
Pictures
Collections

  • Year
  • 1954 ?
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 97277
    • alternative name: Idea (I.D.E.A.)

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org

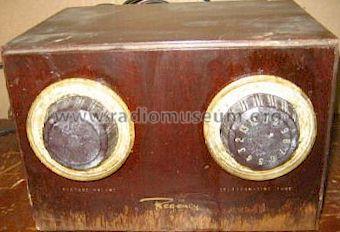

  • Model: Television Remote Control RT-700 - Regency brand of I.D.E.A.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 10.8 x 7.75 x 6.5 inch / 274 x 197 x 165 mm
  • Notes
  • Regency RT-700, Television Remote Control;
    Early television remote control with built in US standard 12 channel VHF tuner working as converter for a usual standard TV, additional volume and brightness control.
    Version RT-700-41 with IF out also known.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
