• Country
• Great Britain (UK)

• Manufacturer / Brand
• Regentone (Brand) various manufacturers.

• Year
• 1935 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239261

• Number of Tubes
• 5

• Valves / Tubes
• TH4B AC/VP1 DDT4 APP4A UU3

• Main principle
• Superheterodyne (common); ZF/IF 123 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

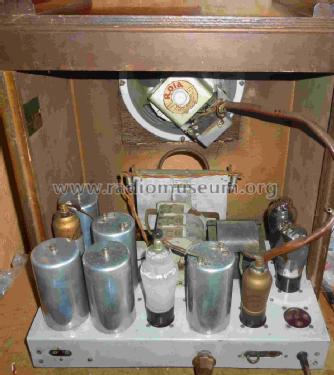

• Model: All Electric Receiver AWS - Regentone Brand various

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 15.25 x 17 x 10 inch / 387 x 432 x 254 mm

• Author
• Model page created by Pete Rich. See "Data change" for further contributors.
