• Country
• Great Britain (UK)

• Manufacturer / Brand
• Regentone (Brand) various manufacturers.

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102045

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8 6K7 6Q7 6F6 5Z4

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100-120; 200-225; 226-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

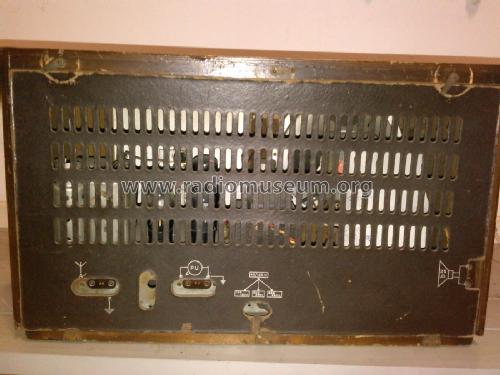

• Model: AW66 - Regentone Brand various

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 325 x 260 mm / 21.7 x 12.8 x 10.2 inch

• External source of data
• Malcolm Bennett

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
