Transportable 5 circular dial
Regentone (Brand) various manufacturers.
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Regentone (Brand) various manufacturers.
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 78738
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 220-230; 240-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Transportable 5 [circular dial] - Regentone Brand various
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 14 x 14.75 x 9.5 inch / 356 x 375 x 241 mm
- Notes
-
There is also a variant with an oval dial.
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
- Other Models
-
Here you find 156 models, 92 with images and 101 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Regentone (Brand) various manufacturers.
Collections
The model Transportable is part of the collections of the following members.
Forum contributions about this model: Regentone Brand: Transportable 5
Threads: 1 | Posts: 3

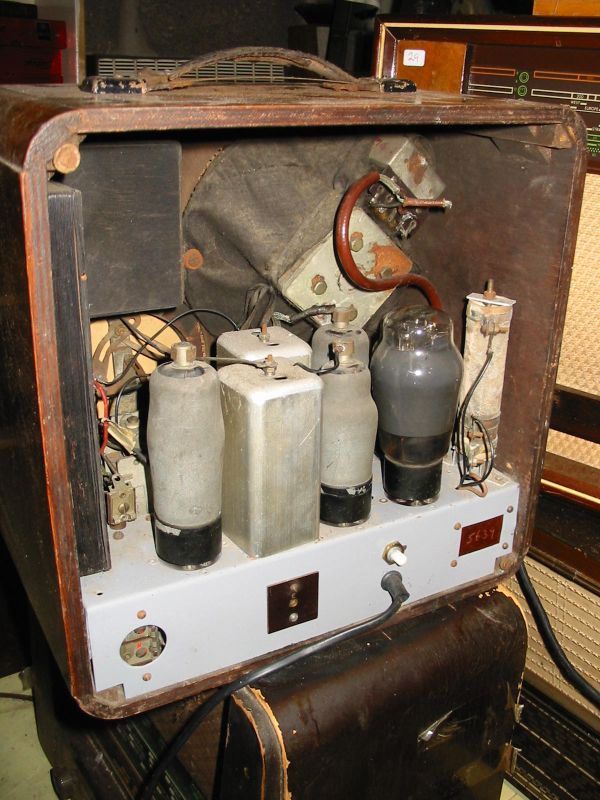

The only way this model could be considered `transportable` is the fact that it has a handle on the top.
It does have the required 5 valves however, although not as designated for the AC/DC version,and is AC mains powered only; there doesn`t appear to be any facilities for battery power. The unit may have been modified, or it is a mains-only version from origin.
Three of the five valves are: UR1C PEN3520 & HLDD1320.
Perhaps this is another model version, or a highly modified version of the AC/DC model: there is evidence of some recent re-wiring.
graham
Attachments
Graham GUY, 05.Aug.11
