• Country
• Germany

• Manufacturer / Brand
• Reissmann Elektroakustik; Dresden (Ostd.)

• Year
• 1960 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 93292

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EF12 EL12N EZ12

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 6 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

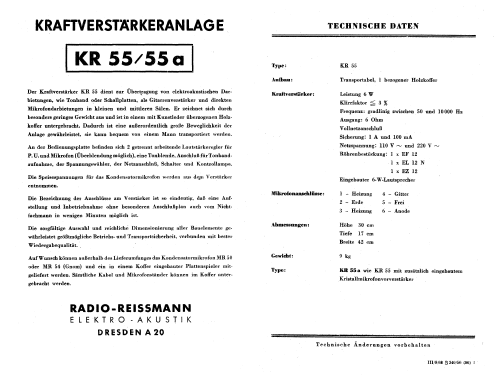

• Model: KR55 - Reissmann Elektroakustik;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 300 x 140 mm / 16.5 x 11.8 x 5.5 inch

• Notes
• Koffergerät mit eingebautem 6-Watt-Breitbandlautsprecher mit HT-Kegel, Eingänge: 1× für Reißmann-Kondensatormikrofon MR50, 1× für Plattenspieler oder Gitarre; beide Kanäle mischbar.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
