HU 23"
Reko, Yonder; Valencia
- Country
- Spain
- Manufacturer / Brand
- Reko, Yonder; Valencia
- Year
- 1966 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 340514

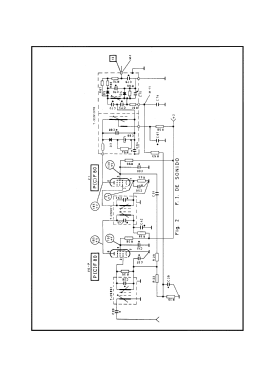

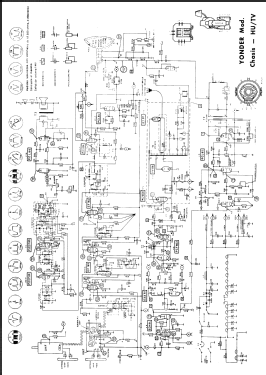

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- PC900 PCF801 EF183 EF183 EF184 PCL84 ECH84 EAA91 PCF802 PL500 PY88 DY87 PCL85 PCF80 PCF80 PCL86 AW59-91 or AW59-90
- Number of Transistors
- 2
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: HU [23"] - Reko, Yonder; Valencia
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Yonder (Reko, S.L.), HU 23"
TV B/N 23" con selector rotativo de VHF. y sintonizador transistorizado de UHF
- Literature/Schematics (1)
- -- Original-techn. papers. (Esquemario TV REDE, Tomo V, 1969)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
