2003

• Country
• Germany

• Manufacturer / Brand
• REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)

• Year
• 1964–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70891

• Picture

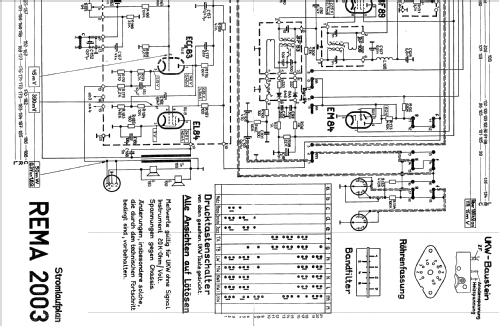

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM84 ECC83 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 10 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 2003 - REMA, Fabrik für Rundfunk,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 710 x 370 x 300 mm / 28 x 14.6 x 11.8 inch

• Notes
• KW 13 bis 49 m auf 2 Bereiche gespreizt, 2 Germanium-Dioden im Ratiodetektor. H/T-Ton-Regler, 3-Tasten Klangregister, getrennte AM/FM-Abstimmung. Standardisierter UKW-Tuner UB1 von Antennenwerk Blankenburg. 2 Gehäuseausführungen.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Price in first year of sale
• 625.00 DM

• External source of data
• Jens Dehne

• Source of data
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers. (Funkverlag Hein, Service-DVD)

• Author
• Model page created by Jens Dehne. See "Data change" for further contributors.
