• Country
• Germany

• Manufacturer / Brand
• REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)

• Year
• 1966–1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72715

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

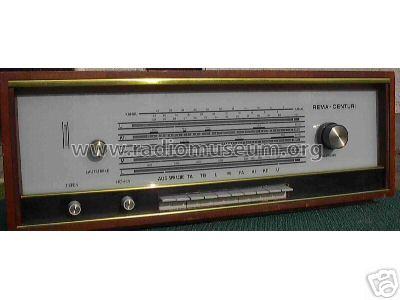

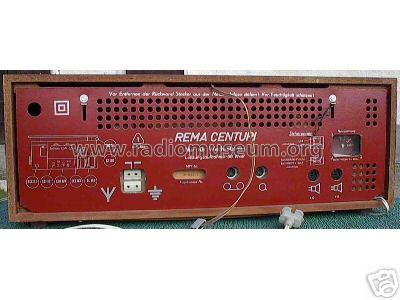

• Model: Centuri 2060 - REMA, Fabrik für Rundfunk,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 600 x 210 x 270 mm / 23.6 x 8.3 x 10.6 inch

• Notes
• Entwickelt und gebaut für Centrum-Versandhaus und nur dort verkauft. Chassis 2060 entspricht elektrisch 2005.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 595.00 DM

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkverlag Hein, Service-DVD

• Author
• Model page created by Michael Preuss. See "Data change" for further contributors.

• Other Models

• Here you find 162 models, 136 with images and 121 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
