• Country
• Germany

• Manufacturer / Brand
• REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)

• Year
• 1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75130

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org

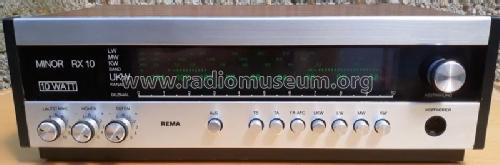

• Model: Minor RX10 - REMA, Fabrik für Rundfunk,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 456 x 148 x 292 mm / 18 x 5.8 x 11.5 inch

• Notes
• 9 Dioden. Als Monoempfänger einer ganzen neuen Geräteserie von Rema Vorgestellt in den Messeberichten der RFE 12/83 wurde aber laut Zeitschrift schon vor der Herbstmesse verkauft.

• External source of data
• RFE 12/83

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Jörg Kulbe. See "Data change" for further contributors.
