- Country
- Germany
- Manufacturer / Brand
- REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)
- Year
- 1988
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 150648

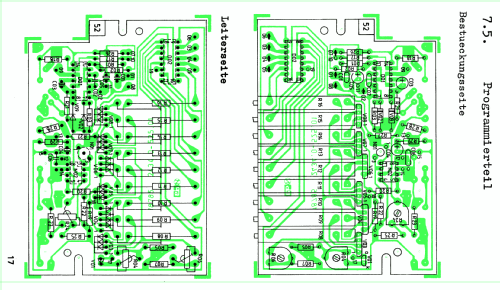

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 16
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 26 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: SR3930 - REMA, Fabrik für Rundfunk,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 390 x 125 x 277 mm / 15.4 x 4.9 x 10.9 inch
- Notes
- Der Receiver SR3930 wurde auf der Leipziger Frühjahrsmesse 1988 vorgestellt. Das Gerät hat 9 Programmspeicherplätze, angezeigt mit einem LED- Siebensegment- Display. Die Ausgangsleistung beträgt 2 x 13 Watt.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Price in first year of sale
- 1,390.00 Mark
- Source of data
- - - Manufacturers Literature
- Literature/Schematics (1)
- Service-DVD Funkverlag B. Hein
- Author
- Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
