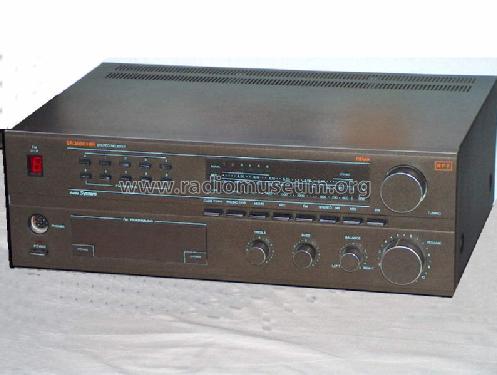

SR3930/1

• Country
• Germany

• Manufacturer / Brand
• REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)

• Year
• 1989

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86524

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: SR3930/1 - REMA, Fabrik für Rundfunk,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 390 x 126 x 277 mm / 15.4 x 5 x 10.9 inch

• Notes
• bis auf geändete ZF elektrisch baugleich mit SR3930, 9 Senderspeicher, Ausgangsleistung 2x 13 W

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 1,390.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Schematic

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
