- Country
- Spain
- Manufacturer / Brand
- Remco S.A.; Llisa de Vall (Barcelona)
- Year
- 1970 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 168717

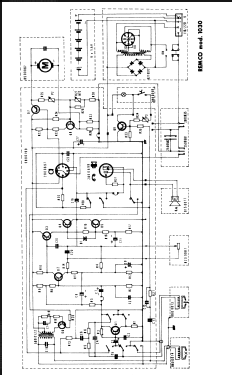

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage

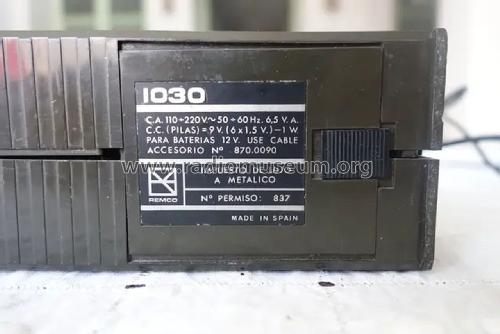

- Line / Batteries (any type) / 110; 220 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 1030 - Remco S.A.; Llisa de Vall
- Notes
-
Remco, S.A., 1030
The PTO/2 transistor is normally used as a diode.
- Literature/Schematics (1)
- -- Schematic (Esquemario Magnetófonos y Cassettes REDE, Tomo II, 1973)
- Literature/Schematics (2)
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)
- Author
- Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
