21-3 Minuette
Remler Co. Ltd.; San Francisco
- Country
- United States of America (USA)
- Manufacturer / Brand
- Remler Co. Ltd.; San Francisco
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 55052
-
- alternative name: Gray & Danielson || Remler Radio Manuf.

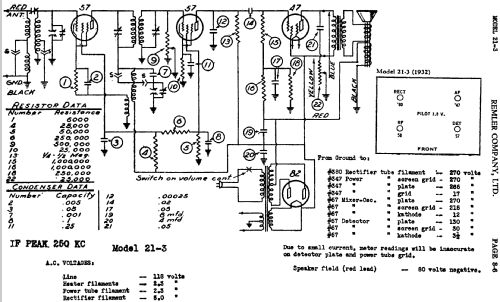

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 250 kHz
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast (MW), Police, sometimes also early TV (75-200m).
- Power type and voltage
- Alternating Current supply (AC) / 118 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21-3 Minuette - Remler Co. Ltd.; San Francisco
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Price in first year of sale
- 29.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Literature/Schematics (1)
- Cathedral & Tombstone Radios (page 277.)
