• Country
• United States of America (USA)

• Manufacturer / Brand
• Remler Co. Ltd.; San Francisco

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 55113

• • alternative name: Gray & Danielson || Remler Radio Manuf.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8 6K7 6H6 6F5 6F6 5Z4

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

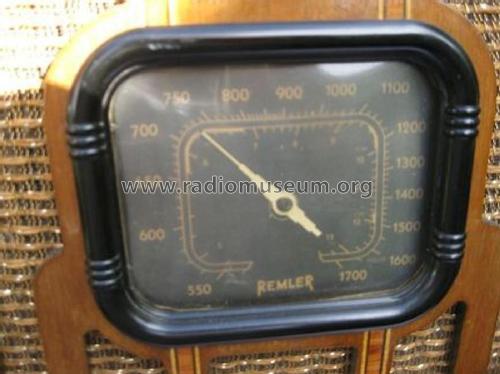

• Model: 64 - Remler Co. Ltd.; San Francisco

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 16 x 10.75 x 8 inch / 406 x 273 x 203 mm

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before
