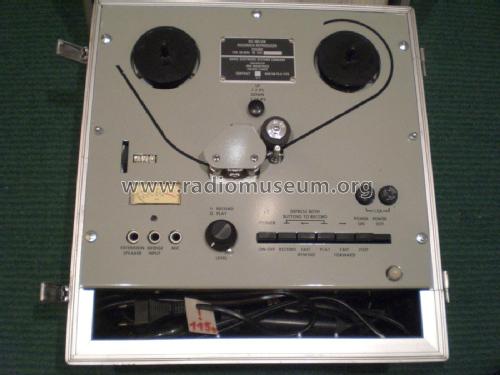

Sound Recorder - Reproducer RD-365/UN
Ren Industries, Inc; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Ren Industries, Inc; Chicago
- Year
- 1971
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 231942
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Picture courtesy of guest Anna Samuelian.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 14
- Semiconductors
- 2N2925 2N2925 2N2925 2N2925 2N2712 2N2712 2N4401 2N4402 2N4919 2N4400 2N4922 2N4922 2N3053 2N3053
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 2 W (max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Sound Recorder - Reproducer RD-365/UN - Ren Industries, Inc; Chicago
- Dimensions (WHD)
- 14 x 7 x 13 inch / 356 x 178 x 330 mm
- Notes
-
Raddrizzatori e diodi: 2x 1N34A, 2x 1N3253, 1N645, 1N972B.
- Net weight (2.2 lb = 1 kg)
- 24 lb (24 lb 0 oz) / 10.896 kg
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
