- Country
- Switzerland
- Manufacturer / Brand
- Resonar (Marke / marque / marca /brand)
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 321871
-
- alternative name: Rediffusion AG; Zürich
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 470/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer); Wired Wireless Receiver (RF!)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2678SG - Resonar Marke / marque / marca
- Shape
- Tablemodel with Push Buttons.
- Notes
-
Resonar 2678SG hat Eingänge für HF- und NF-Drahtfunk.
Wellenbereiche:
- LW 155 - 350 kHz
- MW 515 - 1620 kHz
- KW 5.85 - 18.2 MHz
- UKW 87 - 105 MHz

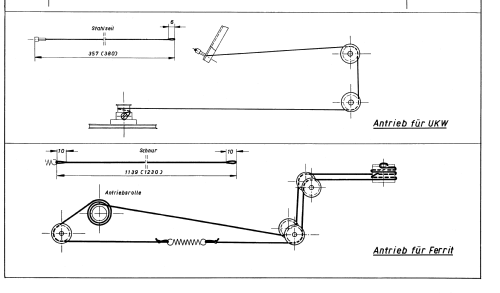

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Adrian Riesen. See "Data change" for further contributors.
