• Country
• Switzerland

• Manufacturer / Brand
• Resonar (Marke / marque / marca /brand)

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 176460

• • alternative name: Rediffusion AG; Zürich

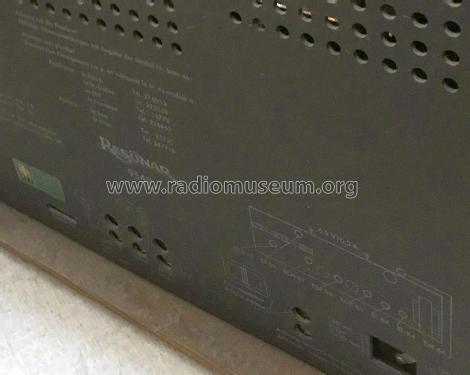

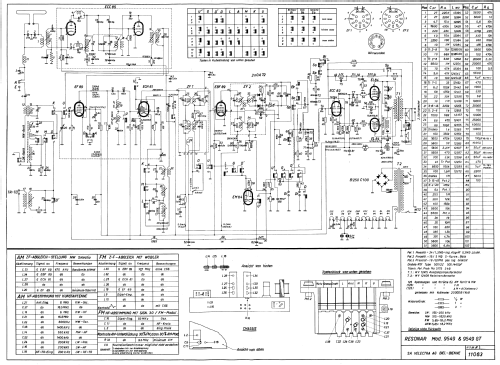

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

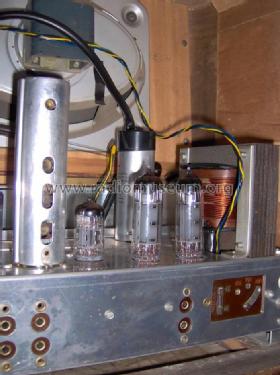

• Valves / Tubes
• ECC85 EF89 ECH81 EBF89 EM84 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220; 150; 125 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 9549 - Resonar Marke / marque / marca

• Shape
• Tablemodel, low profile (big size).

• Notes
• Modèle identique au Resonar 9549GT mais sans tourne-disque.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Lukas Faoro. See "Data change" for further contributors.

• Other Models

• Here you find 24 models, 23 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
