• Country
• Switzerland

• Manufacturer / Brand
• Resonar (Marke / marque / marca /brand)

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111292

• • alternative name: Rediffusion AG; Zürich

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 EF89 ECH81 EBF89 EM84 ECC83 EL84 EL84

• Number of Transistors

• Semiconductors
• OA72 OA72

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer); WiredWirelessReceiver (AF or RF)

• Power type and voltage
• Alternating Current supply (AC) / 220; 150; 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

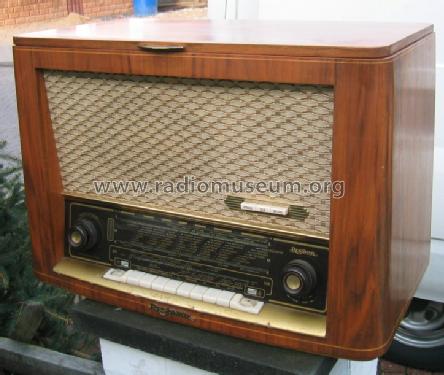

• Model: 9549GT - Resonar Marke / marque / marca

• Shape
• Tablemodel with Push Buttons.

• Notes

• Siehe auch Plattenspieler Chassis 3420 PE.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.
