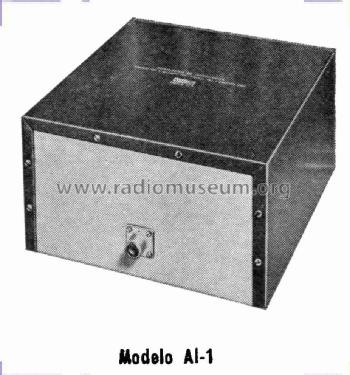

Acoplador impedancias antena AI-1
Retex S.A.; Hospitalet de LLobregat
- Country
- Spain
- Manufacturer / Brand
- Retex S.A.; Hospitalet de LLobregat
- Year
- 1960
- Category
- Antenna (Aerial) or Coupler
- Radiomuseum.org ID
- 242555
Catálogo Retex Kit 1960
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Acoplador impedancias antena AI-1 - Retex S.A.; Hospitalet de
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 230 x 125 x 230 mm / 9.1 x 4.9 x 9.1 inch
- Notes
-
Adapta coaxial de 75 Ω a simétrica de 75 Ω o a simétrica de 300 Ω, máximo de 250 W.
Apto para las bandas de 80, 40, 20,15, 11 y 10 metros.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Price in first year of sale
- 745.00 ESP
- Literature/Schematics (2)
- Catálog Retex Kit 1960
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
