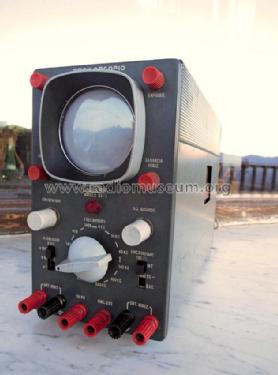

Osciloscopio OS-1

Retex S.A.; Hospitalet de LLobregat

Data
Forum
Pictures
Collections

  • Year
  • 1963 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 288528

 Technical Specifications

  • Number of Tubes
  • 9
  • Number of Transistors
  • Semiconductors
  • OA70
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 125 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Osciloscopio OS-1 - Retex S.A.; Hospitalet de
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 120 x 200 x 280 mm / 4.7 x 7.9 x 11 inch
  • Notes

  • Round screen of 2,5 inches (6,5 cm).

    Vertical Amplifier
    sensibility: 10 mV/cm
    internal impedance: 1,5 MΩ

    Horizontal Amplifier
    sensibility: 200 mV/cm
    internal impedance: 10 MΩ

    Frequency range: 10 Hz-600 KHz in 10 positions
    Synchronism: internal, external and 50 Hz electrical supply
    Power consumption: 60 W

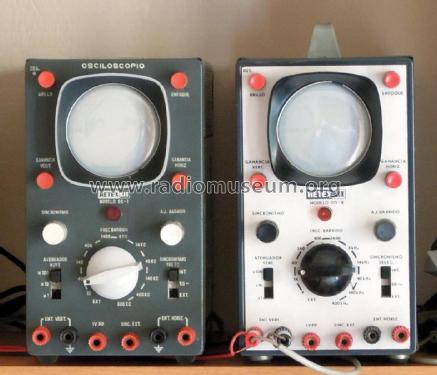

    Very similar with later OS-1E model, also from RETEX, but with frequency range lightly different.

    Precio en catálogo de 1965: 6295 pts.

  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Price in first year of sale
  • 5,995.00 ESP
  • Mentioned in
  • - - Manufacturers Literature (Catálogo nº 5 de 1963)
