Mosfet Supply Stereo Power Amplifier HE 110
Revac s.r.l; Torino
- Country
- Italy
- Manufacturer / Brand
- Revac s.r.l; Torino
- Year
- 1987 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 303614
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 110 W (180 W max.)
- Material
- Metal case
- from Radiomuseum.org

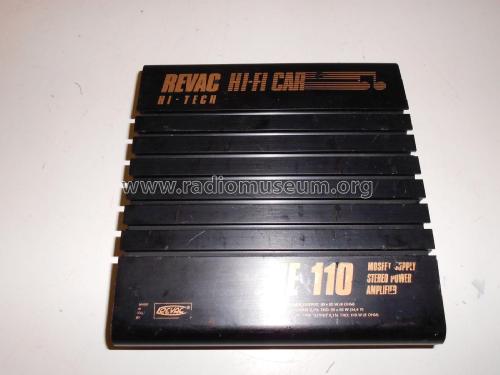

- Model: Mosfet Supply Stereo Power Amplifier HE 110 - Revac s.r.l; Torino
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 195 x 205 x 57 mm / 7.7 x 8.1 x 2.2 inch
- Notes
-
Dynamic power output: 90 + 90 Watt (4 Ω) - RMS power output 0,1 % THD: 55+55 Watt (14,4 V) - Mono bridge power output 0.1 % THD: 110 Watt (8 Ω) - regolazione sensibilità in ingresso: 70/1300 mV.
- Net weight (2.2 lb = 1 kg)
- 2.3 kg / 5 lb 1.1 oz (5.066 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
