TRS-1225
Revere Camera Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Revere Camera Co.; Chicago (IL)
- Year
- 1955 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 329038

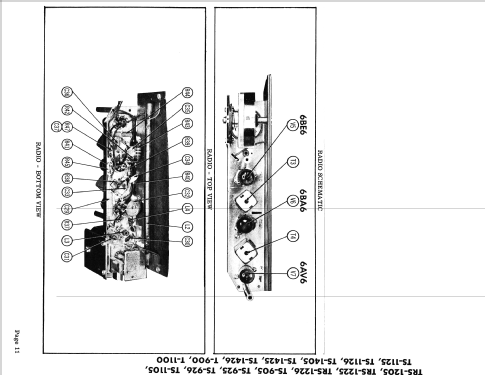

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 50 Hz, 230 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Various materials
- from Radiomuseum.org
- Model: TRS-1225 - Revere Camera Co.; Chicago IL
- Shape
- Book-shelf unit.
- Notes
-
On the serial nameplate, located on the rear of the case, there appears the model number along with the speed, current and voltage at which that particular unit is designed to operate.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 291 Folder 10 dated 10-55)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
