- Country
- United States of America (USA)
- Manufacturer / Brand
- Revere Camera Co.; Chicago (IL)
- Year
- 1955 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 328911

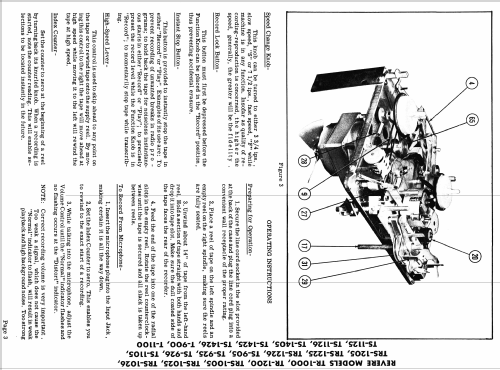

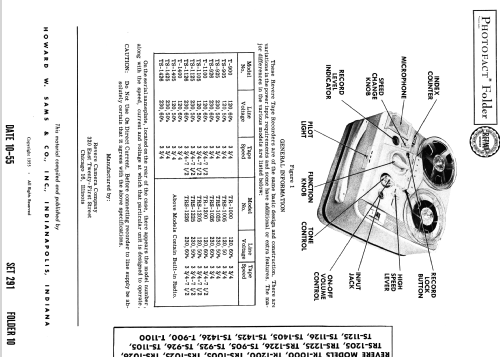

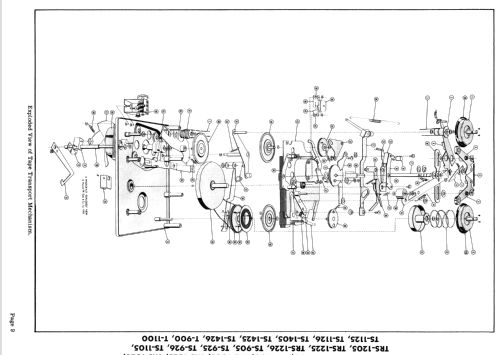

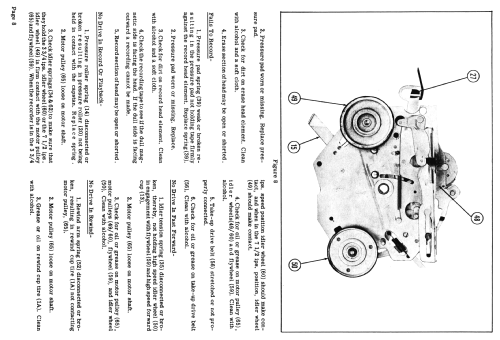

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 50 Hz, 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Various materials
- from Radiomuseum.org
- Model: TS-905 - Revere Camera Co.; Chicago IL
- Shape
- Book-shelf unit.
- Notes
-
On the serial nameplate, located on the rear of the case, there appears the model number,along with the speed, current and voltage at wich that particular unit is designed to operate.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 291 Folder 10 dated 10-55)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
