Tape Recorder T-100

Revere Camera Co.; Chicago (IL)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Revere Camera Co.; Chicago (IL)

Year
1951–1955 ?

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
55185

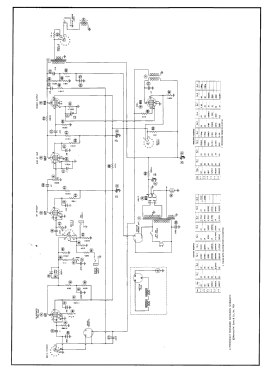

Schematics

Tape Recorder T-100; Revere Camera Co.; (ID = 2969412) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 2969413) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 2969414) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 2969415) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 2969416) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 2969417) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 2969418) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 2969419) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 2969421) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 382741) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567781) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567782) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567783) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567784) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567801) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567802) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567803) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567785) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567786) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567787) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567788) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567790) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567791) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567792) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567793) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567794) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567795) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567796) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567797) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 567798) R-Player — Revere Camera Co.; Tape Recorder T-100 (3)

Tape Recorder T-100; Revere Camera Co.; (ID = 1207620) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)
tradera.com VK:bullradio #152982830

Tape Recorder T-100; Revere Camera Co.; (ID = 1207621) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)
tradera.com VK:bullradio #152982830

Tape Recorder T-100; Revere Camera Co.; (ID = 1207622) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)
tradera.com VK:bullradio #152982830

Tape Recorder T-100; Revere Camera Co.; (ID = 1207623) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)
tradera.com VK:bullradio #152982830

Tape Recorder T-100; Revere Camera Co.; (ID = 1251985) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)

Tape Recorder T-100; Revere Camera Co.; (ID = 1251987) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)

Tape Recorder T-100; Revere Camera Co.; (ID = 1251988) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)

Tape Recorder T-100; Revere Camera Co.; (ID = 1251989) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)

Tape Recorder T-100; Revere Camera Co.; (ID = 1251990) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)

Tape Recorder T-100; Revere Camera Co.; (ID = 2064149) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)

Tape Recorder T-100; Revere Camera Co.; (ID = 2064150) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)

Tape Recorder T-100; Revere Camera Co.; (ID = 2064152) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)

Tape Recorder T-100; Revere Camera Co.; (ID = 2072440) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)

Tape Recorder T-100; Revere Camera Co.; (ID = 2072767) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)

Tape Recorder T-100; Revere Camera Co.; (ID = 2969411) R-Player — Revere Camera Co.; Tape Recorder T-100 (2)

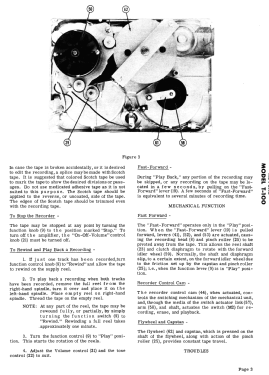

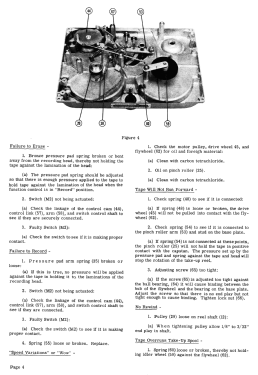

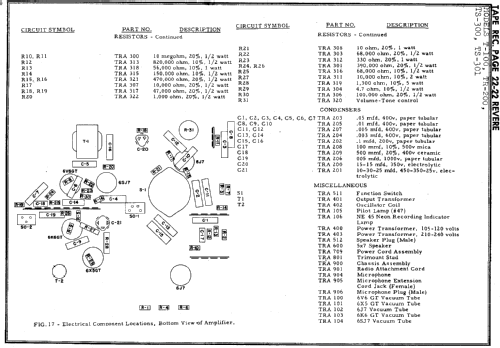

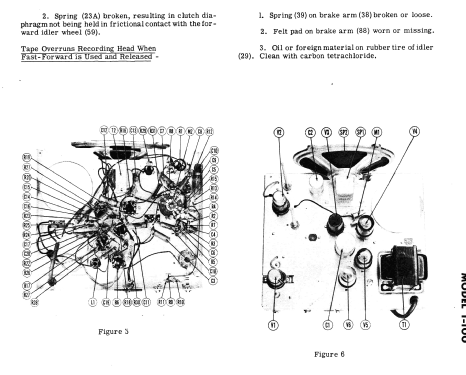

Picture from service manual.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
6

Valves / Tubes
6J7 6J7 6SJ7 6K6GT 6V6GT 6X5GT

Main principle
Audio-Amplification

Wave bands
- without

Details
Tape Recorder

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 105 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Material
Leather / canvas / plastic - over other material

from Radiomuseum.org
Model: Tape Recorder T-100 - Revere Camera Co.; Chicago IL

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
15 x 9 x 21 inch / 381 x 229 x 533 mm

Notes
Revere Camera Co. T-100, Tape Recorder; Reel to reel type, single speed, monaural, tone control, VU indicator, also made for 220V with a different transformer.

See also similar model T-500.

Net weight (2.2 lb = 1 kg)
11.9 kg / 26 lb 3.4 oz (26.211 lb)

Price in first year of sale
179.50 $

External source of data
Ernst Erb

Circuit diagram reference
Rider's Perpetual, Volume 22, covering 1951

Mentioned in

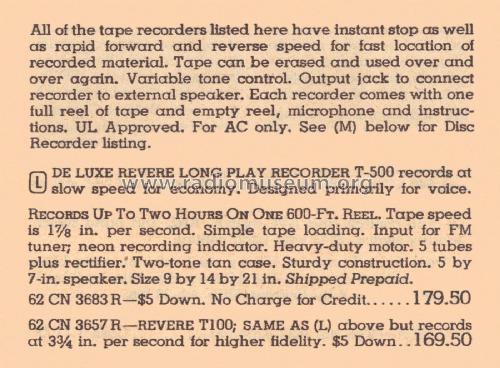

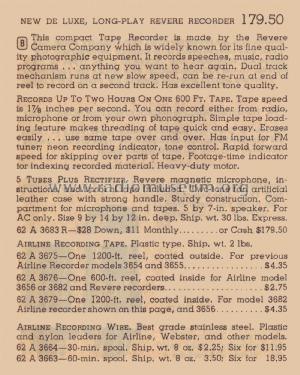

Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1952, page 606. Fall/Winter 1954/55, page 663.)

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 149, folder 11, dated 11-51)
