TR-200

Revere Camera Co.; Chicago (IL)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Revere Camera Co.; Chicago (IL)

Year
1952 ?

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
55186

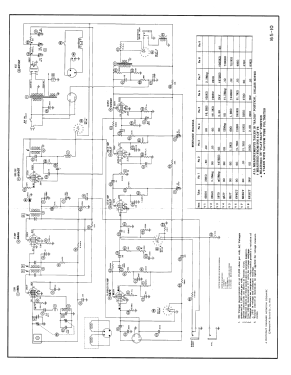

Schematics

TR-200 ; Revere Camera Co.; (ID = 3044417) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 3044418) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 3044419) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 3044420) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 3044421) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 382742) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567805) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567806) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567807) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567808) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567809) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567810) R-Player — Revere Camera Co.; TR-200 (3)

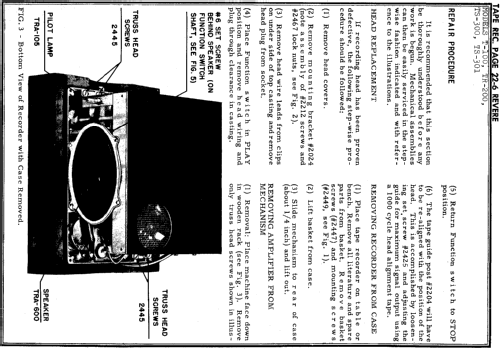

TR-200 ; Revere Camera Co.; (ID = 567811) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567812) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567813) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567814) R-Player — Revere Camera Co.; TR-200 (3)

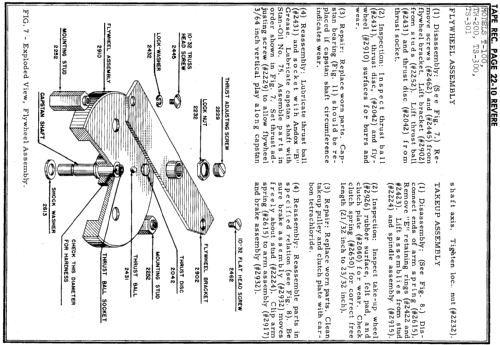

TR-200 ; Revere Camera Co.; (ID = 567815) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567816) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567817) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567818) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567819) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567820) R-Player — Revere Camera Co.; TR-200 (3)

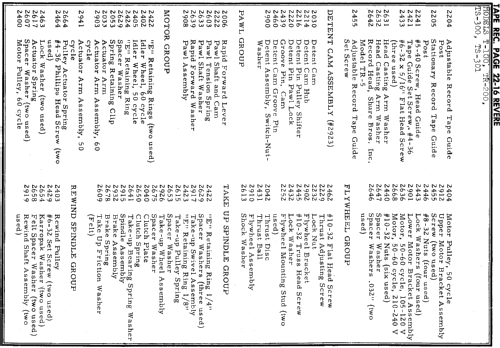

TR-200 ; Revere Camera Co.; (ID = 567821) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567822) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567823) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567826) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 567827) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 2281333) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 2281594) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 2281595) R-Player — Revere Camera Co.; TR-200 (3)

TR-200 ; Revere Camera Co.; (ID = 1356352) R-Player — Revere Camera Co.; TR-200 (2)

TR-200 ; Revere Camera Co.; (ID = 1356353) R-Player — Revere Camera Co.; TR-200 (2)

TR-200 ; Revere Camera Co.; (ID = 1356354) R-Player — Revere Camera Co.; TR-200 (2)

TR-200 ; Revere Camera Co.; (ID = 1356355) R-Player — Revere Camera Co.; TR-200 (2)

TR-200 ; Revere Camera Co.; (ID = 1356356) R-Player — Revere Camera Co.; TR-200 (2)

TR-200 ; Revere Camera Co.; (ID = 1356357) R-Player — Revere Camera Co.; TR-200 (2)

TR-200 ; Revere Camera Co.; (ID = 1356358) R-Player — Revere Camera Co.; TR-200 (2)

TR-200 ; Revere Camera Co.; (ID = 1356359) R-Player — Revere Camera Co.; TR-200 (2)

TR-200 ; Revere Camera Co.; (ID = 1356360) R-Player — Revere Camera Co.; TR-200 (2)

TR-200 ; Revere Camera Co.; (ID = 3044423) R-Player — Revere Camera Co.; TR-200 (2)
Picture from service manual.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
8

Valves / Tubes
6BE6 6BA6 5879 or 6J7 6SJ7 or 6J7 6SJ7 6V6GT 6K6GT 6X5GT

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Tuned circuits
2 AM circuit(s)

Wave bands
Broadcast only (MW).

Details
Tape Recorder

Power type and voltage
Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
5.5 W (undistorted)

Material
Leather / canvas / plastic - over other material

from Radiomuseum.org
Model: TR-200 - Revere Camera Co.; Chicago IL

Shape
Tablemodel, with any shape - general.

Notes
Revere model TR-200 is an AC operated tape recorder with AM superheterodyne receiver.
Tape Recorder with Radio. Reel to reel type, single speed, monaural, tone control, VU indicator. Also made for 220V with a different transformer. Eliptical speaker is 5 x 7 inch.

Net weight (2.2 lb = 1 kg)
28 lb 0 oz (28 lb) / 12.712 kg

External source of data
Ernst Erb

Source of data
- - Manufacturers Literature

Circuit diagram reference
Rider's Perpetual, Volume 22, covering 1951

Literature/Schematics (1)
- - Manufacturers Literature

Literature/Schematics (2)
Photofact Folder, Howard W. SAMS (Set 165, folder 10, dated 4-52)
