• Country
• Italy

• Manufacturer / Brand
• Zanussi, Naonis, Rex, Secram; Porcia (PN)

• Year
• 1980 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 221780

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 230MB4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Batteries (any type) / 220/12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

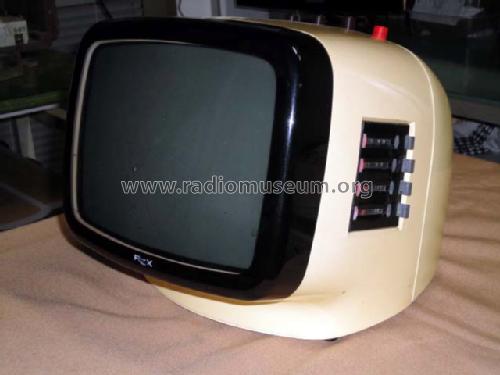

• Model: L9 - Zanussi, Naonis, Rex, Secram;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 250 x 240 x 270 mm / 9.8 x 9.4 x 10.6 inch

• Notes
• Apparecchio portatile di piccole dimensioni.
  Quattro canali memorizzabili.

• Net weight (2.2 lb = 1 kg)
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)

• Author
• Model page created by Raffaele Pedrini. See "Data change" for further contributors.
