- Country
- Germany
- Manufacturer / Brand
- Rex-Plastic, Max Ernst KG.; Nürnberg
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 225115
- Number of Transistors
- 3
- Main principle
- TRF with diode detector; 2 AF stage(s); Reflex
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

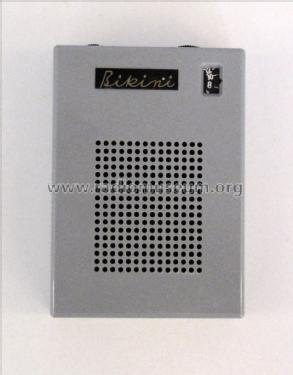

- Model: Bikini - Rex-Plastic, Max Ernst KG.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 75 x 105 x 28 mm / 3 x 4.1 x 1.1 inch
- Notes
-
Schaltung ähnl. Bambino superior
- Author
- Model page created by Wolfgang Gebert. See "Data change" for further contributors.
