Three Speed Automatic Radiogramophone ARG5000
RGD (Brand), Radio Gramophone Development Co. Ltd.; Birmingham
- Country
- Great Britain (UK)
- Manufacturer / Brand
- RGD (Brand), Radio Gramophone Development Co. Ltd.; Birmingham
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 102166
Advert
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-120; 200-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Three Speed Automatic Radiogramophone ARG5000 - RGD Brand, Radio Gramophone
- Shape

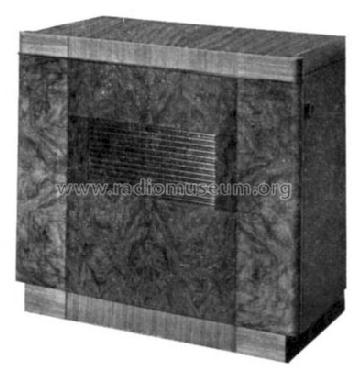

- Console, Lowboy (legs < 50 %).
- Notes
-

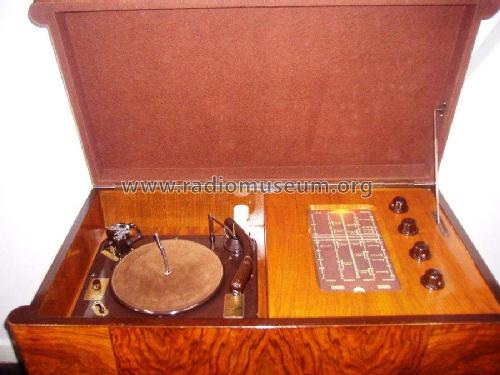

A four band console radiogram covering MW (180 - 550 metres), LW (1000 - 2000 metres), SW1 (40 - 143 metres) and SW2 (13.6 - 40 metres) fitted with a 3-speed Garrard RC80 autochanger with turnover crystal cartridge.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
