• Country
• Great Britain (UK)

• Manufacturer / Brand
• RGD (Brand), Radio Gramophone Development Co. Ltd.; Birmingham

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102167

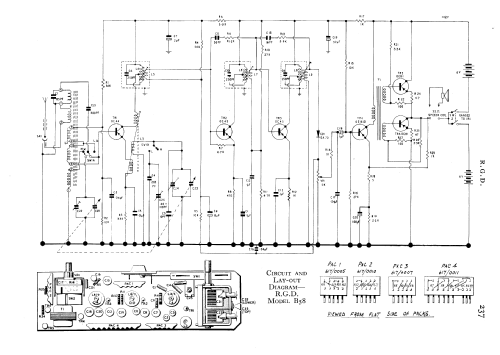

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC44 OC45 OC45 OC81D OC81 OC81 OA70

• Main principle
• Superheterodyne (common); ZF/IF 475 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

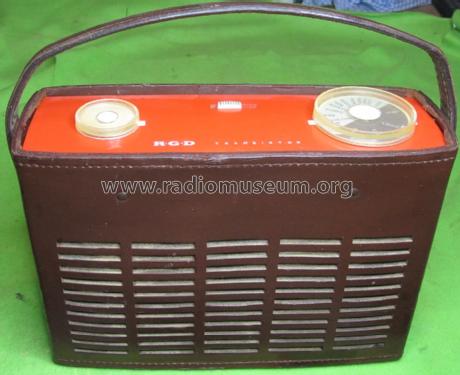

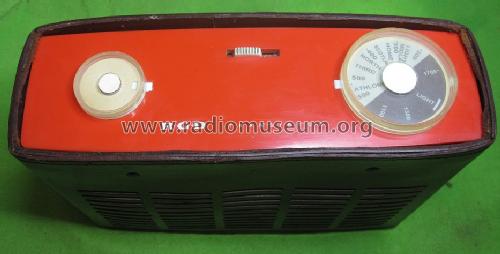

• Model: B58 - RGD Brand, Radio Gramophone

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 226 x 168 x 69 mm / 8.9 x 6.6 x 2.7 inch

• Notes

• The dimensions exclude the handle, batteries 2 x PP1

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• - - Manufacturers Literature

• Literature/Schematics (2)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 148 models, 115 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RGD (Brand), Radio Gramophone Development Co. Ltd.; Birmingham
