- Country
- Great Britain (UK)
- Manufacturer / Brand
- RGD (Brand), Radio Gramophone Development Co. Ltd.; Birmingham
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174400

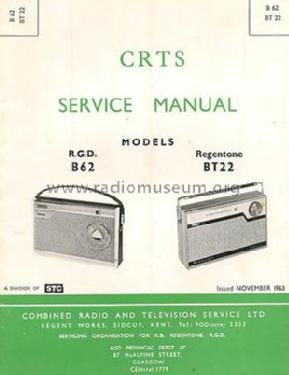

GB CRTS Service Manuals Nov. 1963
GB CRTS Service Manuals Nov. 1963
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.4 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: B62 - RGD Brand, Radio Gramophone
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 10.5 x 7 x 3.125 inch / 267 x 178 x 79 mm
- Notes
- Portable radio fitted with car aerial & earphone sockets Battery type PP9. Same chassis as Regentone model BT22.
- Source of data
- - - Manufacturers Literature
- Mentioned in
- GB CRTS Service Manuals Nov. 1963
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
