• Country
• Great Britain (UK)

• Manufacturer / Brand
• RGD (Brand), Radio Gramophone Development Co. Ltd.; Birmingham

• Year
• 1965 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 176394

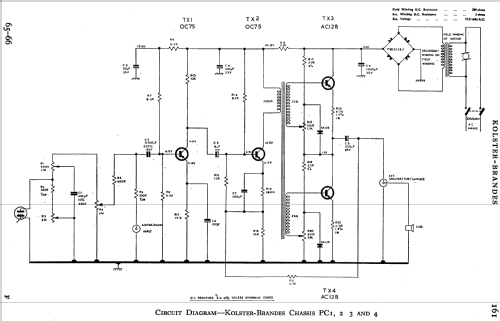

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• OC75 OC75 AC128 AC128

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• from Radiomuseum.org
• Model: Costa Brava RP232 - RGD Brand, Radio Gramophone

• Notes

• RP232 Costa Brava.
  The same fully transistorized chassis as RP231, but including some extra high-performance features.
  Garrard 'Custom' AT5 record changer, with heavy 12" turntable for super-accurate record speed, and Garrard type GC8M cartridge
  Separate bass and treble controls. 'Off' and 'On' indicator lamp. Big 7" x 3½" elliptical speaker and wooden cabinet give extra fine tone.
  Finished in willow green and cream.
  Input and output sockets as in RP231.
  Weighs only 18½ lb.
  Price 23½ gns.

  Same chassis as KB model KP032.

• Source of data
• -- Schematic

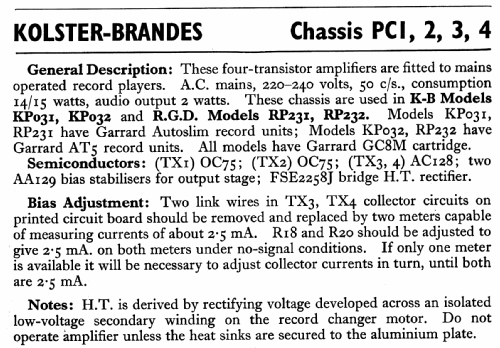

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Literature/Schematics (1)
• ERT Chart 1623

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
