- Country
- Great Britain (UK)
- Manufacturer / Brand
- RGD (Brand), Radio Gramophone Development Co. Ltd.; Birmingham
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 352821
- Number of Tubes
- 9
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 50 Hz, 200-250 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

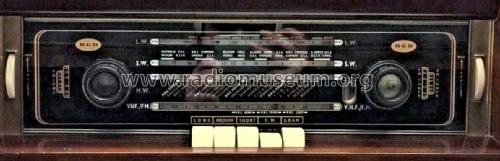

- Model: Table Radio T1 - RGD Brand, Radio Gramophone
- Shape
- Tablemodel with Push Buttons.
- Notes
-
Table radio which requires a separate speaker.
Wavebands:-
- LW 1000 - 2000 metres
- MW 190 - 550 metres
- SW 6 - 17 MHz
- VHF/FM 88 - 100 MHz
Connection for pick-up.
- Author
- Model page created by Clive Forder. See "Data change" for further contributors.
